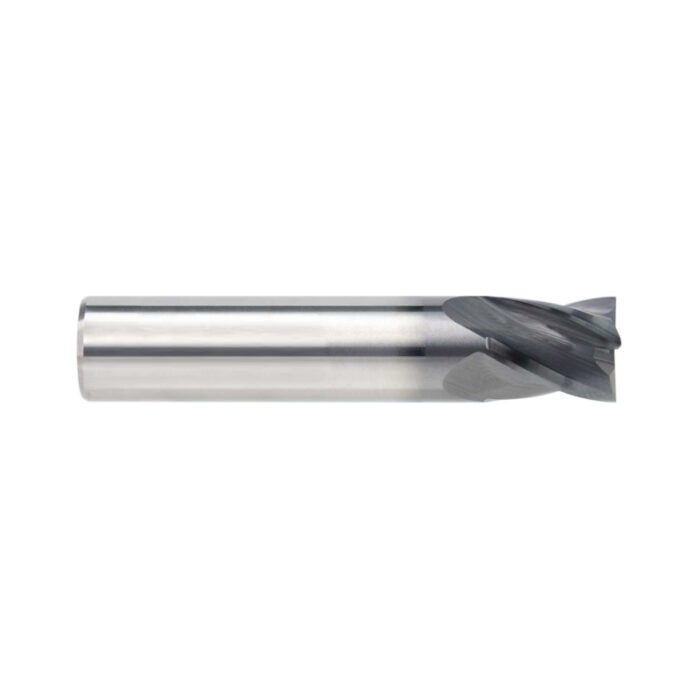

Stubby Solid Carbide End Mills <52 Hrc
Stubby Solid Carbide End Mills <52 Hrc - Image 2

Stubby Solid Carbide End Mills <52 Hrc

VOLLHARTMETALLFRÄSER KURZ



d1(e8) L2 L1 d2(h6) Z Uncoated Code Coated Code
3 5 40 3 2 4002840 4002850
4 7 40 4 2 4002860 4002870
5 8 40 5 2 4002880 4002890
6 8 40 6 2 4002900 4002910
8 10 45 8 2 4002920 4002930
10 12 50 10 2 4002940 4002950
12 14 60 12 2 4002960 4002970
14 15 70 14 2 4002980 4002990
16 15 70 16 2 4003000 4003010
18 15 70 18 2 4003020 4003030
20 15 70 20 2 4003040 4003050
3 5 40 3 3 4002620 4002630
4 7 40 4 3 4002640 4002650
5 8 40 5 3 4002660 4002670
6 8 40 6 3 4002680 4002690
8 10 45 8 3 4002700 4002710
10 12 50 10 3 4002720 4002730
12 14 60 12 3 4002740 4002750
14 15 70 14 3 4002760 4002770
16 15 70 16 3 4002780 4002790
18 15 70 18 3 4002800 4002810
20 15 70 20 3 4002820 4002830
3 5 40 3 4 4002400 4002410
4 7 40 4 4 4002420 4002430
5 8 40 5 4 4002440 4002450
6 8 40 6 4 4002460 4002470
8 10 45 8 4 4002480 4002490
10 12 50 10 4 4002500 4002510
12 14 60 12 4 4002520 4002530
14 15 70 14 4 4002540 4002550
16 15 70 16 4 4002560 4002570
18 15 70 18 4 4002580 4002590
20 15 70 20 4 4002600 4002610
