SVVCN-External Turning

SVVCN KLEMMDREHHALTER

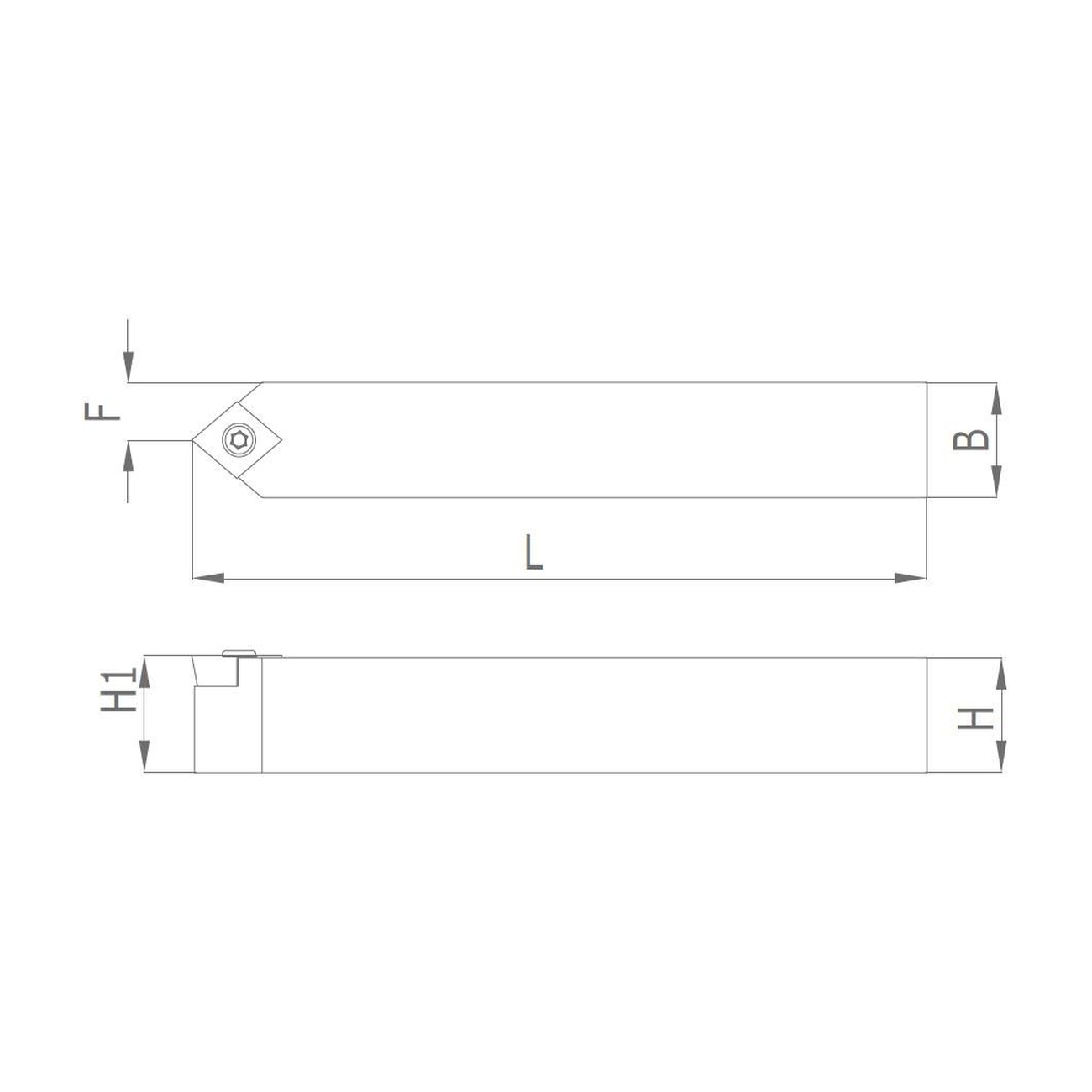

Code VC.. Stock H1 H B F L1 L2 λS Ƴ0 Insert Shim Screw Screw Torx
HEI.1027000 ● 12 12 6 100 20 0 0 VC.T 1103.. - - M2,5X7 T08
HEI.1027100 ● 16 16 8 100 25 0 0 VC.T 1103.. - - M2,5X7 T08
HEI.1027200 ● 20 20 10 125 35 0 0 VC.T 1103.. - - M2,5X7 T08
HEI.1027300 ● 16 16 8 100 25 0 0 VC.T 1604.. - - M3,5X11 T15
HEI.1027400 ● 20 20 10 125 35 0 0 VC.T 1604.. VB..016 M5X0.5XM3.5 M3,5X14 T15
HEI.1027500 ● 25 25 12.5 150 40 0 0 VC.T 1604.. VB..016 M5X0.5XM3.5 M3,5X14 T15
HEI.1027600 ● 32 32 16 170 40 0 0 VC.T 1604.. VB..016 M5X0.5XM3.5 M3,5X14 T15
