Product Table

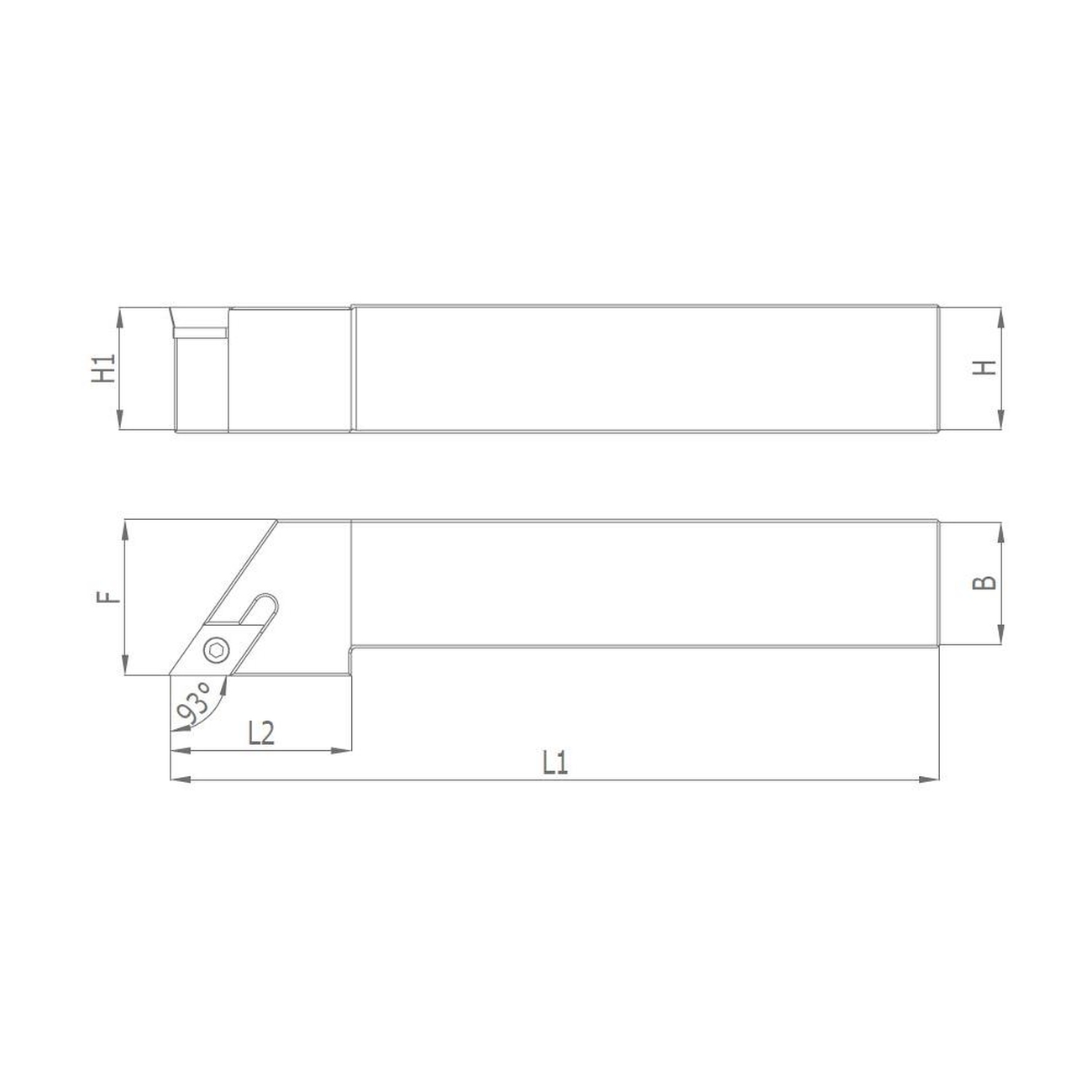

| ISO | R | L | H1 H | B | F | L1 | L2 | λS | ϒ0 | Insert | Shim | Screw | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1025700 | ● | ● | 12 | 12 | 20 | 100 | 25 | 0 | 0 | VBM. 1103.. | - | - | M2.5X7 | T08 |
| 1025800 | ● | ● | 16 | 16 | 20 | 100 | 25 | 0 | 0 | - | - | |||
| 1025900 | ● | ● | 20 | 20 | 25 | 125 | 30 | 0 | 0 | - | - | |||
| 1026000 | ● | ● | 20 | 20 | 25 | 125 | 35 | 0 | 0 | VBM. 1604.. | VB..016 | M5X- 0.5XM3.5 | M3.5X14 | T15 |
| 1026100 | ● | ● | 25 | 25 | 32 | 150 | 40 | 0 | 0 | |||||
| 1026200 | ● | ● | 32 | 32 | 40 | 170 | 40 | 0 | 0 |
