SRDCN External Turning

SRDCN KLEMMDREHHALTER

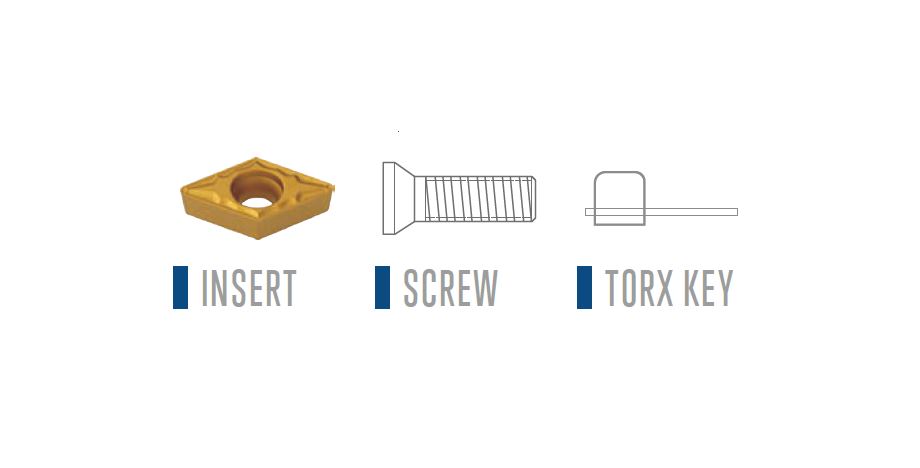

Code RC.. Stock H1 H B F L1 L2 λS Ƴ0 Insert Screw Torx
HEI.1032600 ● 16 16 8 125 25 0 0 RC.T 0803.. M3X9 T10
HEI.1032700 ● 20 20 10 125 30 0 0 RC.T 0803.. M3X9 T10
HEI.1032800 ● 25 25 12.5 150 35 0 0 RC.T 0803.. M3X9 T10
HEI.1032900 ● 20 20 10 125 30 0 0 RC.T 10T3.. M4X11 T15
HEI.1033000 ● 25 25 12.5 150 35 0 0 RC.T 10T3.. M4X11 T15
HEI.1033100 ● 20 20 10 125 30 0 0 RC.T 1204.. M4X11 T15
HEI.1033200 ● 25 25 12.5 150 35 0 0 RC.T 1204.. M4X11 T15
HEI.1033300 ● 25 25 12.5 150 35 0 0 RC.T 1604.. M5X12 T20
HEI.1033400 ● 16 16 8 100 20 0 0 RC.T 10T3.. M4X11 T15
HEI.1033500 ● 32 32 16 170 40 0 0 RC.T 10T3.. M4X11 T15
HEI.1033600 ● 32 32 16 170 40 0 0 RC.T 1204.. M4X11 T15
