NC Solid Carbide Drills
NC Solid Carbide Drills - Image 2

NC Solid Carbide Drills

VOLLHARTMETALL BOHRER

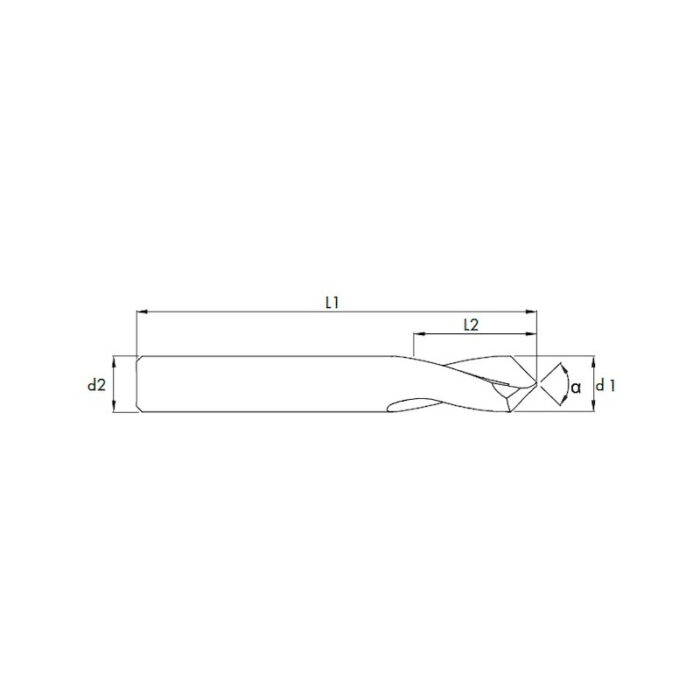

d1(e8) L2 L1 d2(h6) Z ∝ Uncoated Code Coated Code
4 11 50 4 2 90 ° 4038830 4038840
5 13 50 5 2 90 ° 4038850 4038860
6 13 57 6 2 90 ° 4038870 4038880
8 19 63 8 2 90 ° 4038890 4038900
10 22 72 10 2 90 ° 4038910 4038920
12 26 83 12 2 90 ° 4038930 4038940
14 26 83 14 2 90 ° 4038950 4038960
16 32 92 16 2 90 ° 4038970 4038980
18 32 92 18 2 90 ° 4038990 4039000
20 38 104 20 2 90 ° 4039010 4039020
4 11 50 4 2 120 ° 4039030 4039040
5 13 50 5 2 120 ° 4039050 4039060
6 13 57 6 2 120 ° 4039070 4039080
8 19 63 8 2 120 ° 4039090 4039100
10 22 72 10 2 120 ° 4039110 4039120
12 26 83 12 2 120 ° 4039130 4039140
14 26 83 14 2 120 ° 4039150 4039160
16 32 92 16 2 120 ° 4039170 4039180
18 32 92 18 2 120 ° 4039190 4039200
20 38 104 20 2 120 ° 4039210 4039220
