Product Table

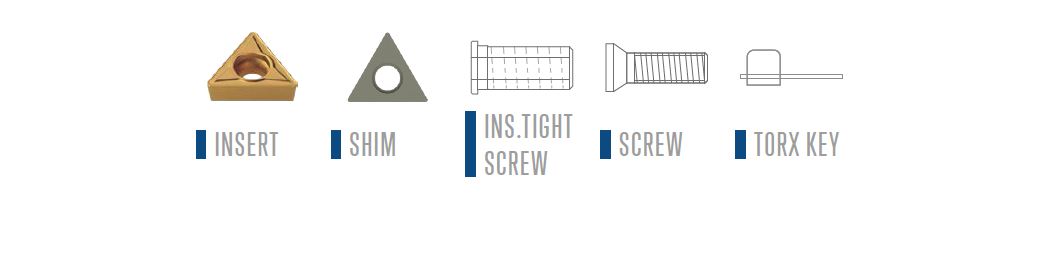

| ISO | R | L | H1 H | B | F | L1 | L2 | λS | ϒ0 | Insert | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1031500 | ● | ● | 16 | 16 | 21 | 125 | 25 | 0 | 0 | RC.T 0803.. | M3X9 | T10 |
| 1031600 | ● | ● | 20 | 20 | 25 | 125 | 35 | 0 | 0 | |||
| 1031700 | ● | ● | 25 | 25 | 32 | 150 | 40 | 0 | 0 | |||
| 1031800 | ● | ● | 16 | 16 | 21 | 100 | 25 | 0 | 0 | RC.T 10T3.. | M4X11 | T15 |
| 1031900 | ● | ● | 20 | 20 | 25 | 125 | 35 | 0 | 0 | |||
| 1032000 | ● | ● | 25 | 25 | 32 | 150 | 40 | 0 | 0 | |||
| 1032100 | ● | ● | 32 | 32 | 40 | 170 | 40 | 0 | 0 | |||
| 1032200 | ● | ● | 16 | 16 | 21 | 100 | 25 | 0 | 0 | RC.T 1204.. | ||
| 1032300 | ● | ● | 20 | 20 | 25 | 125 | 35 | 0 | 0 | |||
| 1032400 | ● | ● | 25 | 25 | 32 | 150 | 40 | 0 | 0 | |||
| 1032500 | ● | ● | 32 | 32 | 40 | 170 | 40 | 0 | 0 |
