Product Table

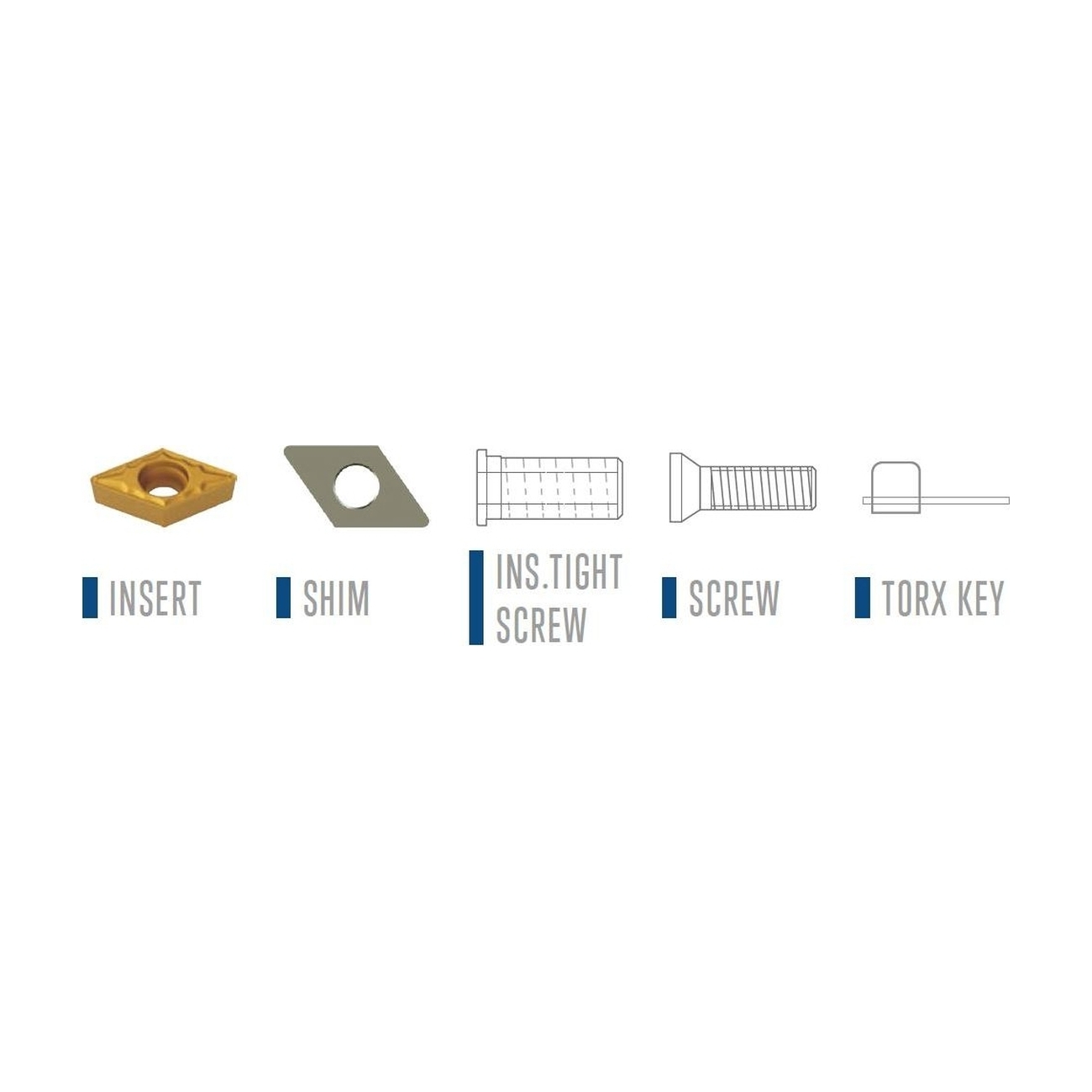

| ISO | R | L | D | D min | F | L1 | L2 | λF | ϒP | Insert | Shim | Screw | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1052500 | ● | ● | 10 | 13 | 7.5 | 125 | 25 | - | - | DC.T 0702.. | - | - | M2,5X5 | T08 |
| 1052600 | ● | ● | 12 | 16 | 9 | 150 | 30 | - | - | |||||
| 1052700 | ● | ● | 16 | 20 | 11 | 180 | 35 | - | - | |||||
| 1052800 | ● | ● | 20 | 25 | 13 | 200 | 40 | - | - | DC.T 11T3 | M3.5X8 | T15 | ||
| 1052900 | ● | ● | 25 | 32 | 17.5 | 250 | 50 | - | - | DC..011 | M5X- 0.5XM3.5 | M3.5X10 | ||
| 1053000 | ● | ● | 32 | 40 | 23 | 300 | 60 | - | - |
