Description
SDMT 07/09/12 / KLP

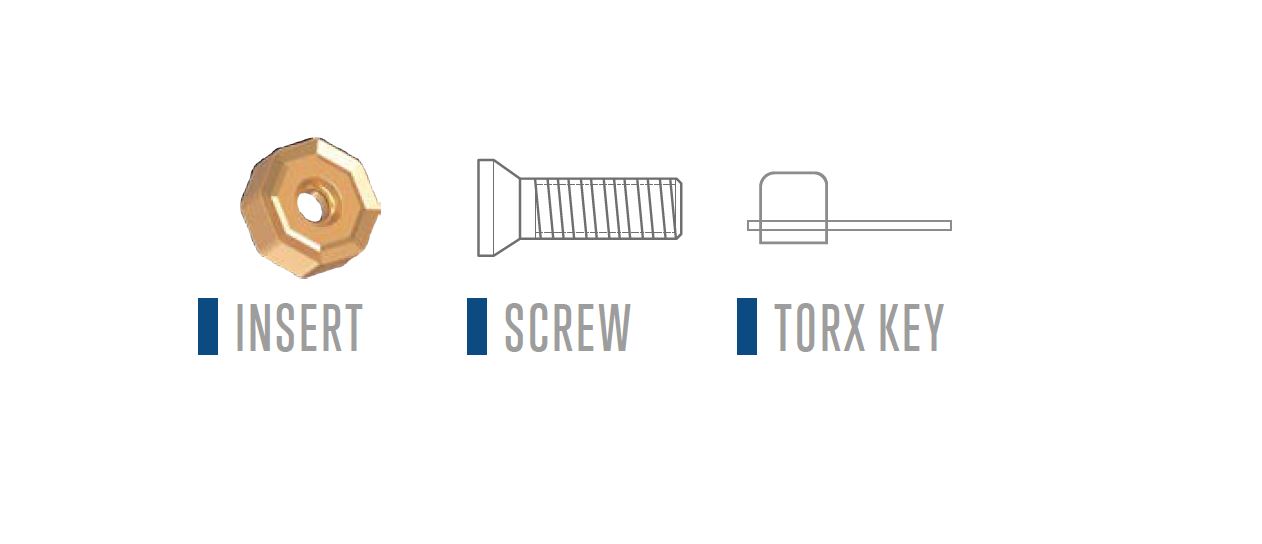

| KLP SDMT 07/09/12 | Stock | Inter Coolant | D | Z | H | d | Insert | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|
| 1180300 | ● | ● | 40 | 5 | 40 | 16 | SDMT 07 | M3,5×10 | T15 |
| 1180400 | ● | ● | 50 | 6 | 45 | 22 | |||
| 1180500 | ● | ● | 40 | 4 | 40 | 16 | SDMT 09T3 | ||
| 1180600 | ● | ● | 50 | 5 | 40 | 22 | |||
| 1180700 | ● | ● | 52 | 4 | 40 | 22 | |||
| 1180800 | ● | ● | 52 | 6 | 40 | 22 | |||
| 1180900 | ● | ● | 63 | 7 | 40 | 22 | |||
| 1181000 | ● | ● | 80 | 8 | 50 | 27 | |||
| 1181100 | ● | ● | 50 | 4 | 40 | 22 | SDMT 1205 | M4,5×12 | T20 |
| 1181200 | ● | ● | 52 | 5 | 40 | 22 | |||
| 1181300 | ● | ● | 63 | 5 | 40 | 22 | |||
| 1181400 | ● | ● | 63 | 6 | 40 | 22 | |||
| 1181500 | ● | ● | 66 | 5 | 50 | 27 | |||
| 1181600 | ● | ● | 66 | 6 | 50 | 27 | |||
| 1181700 | ● | ● | 80 | 7 | 50 | 27 |
