Product Table

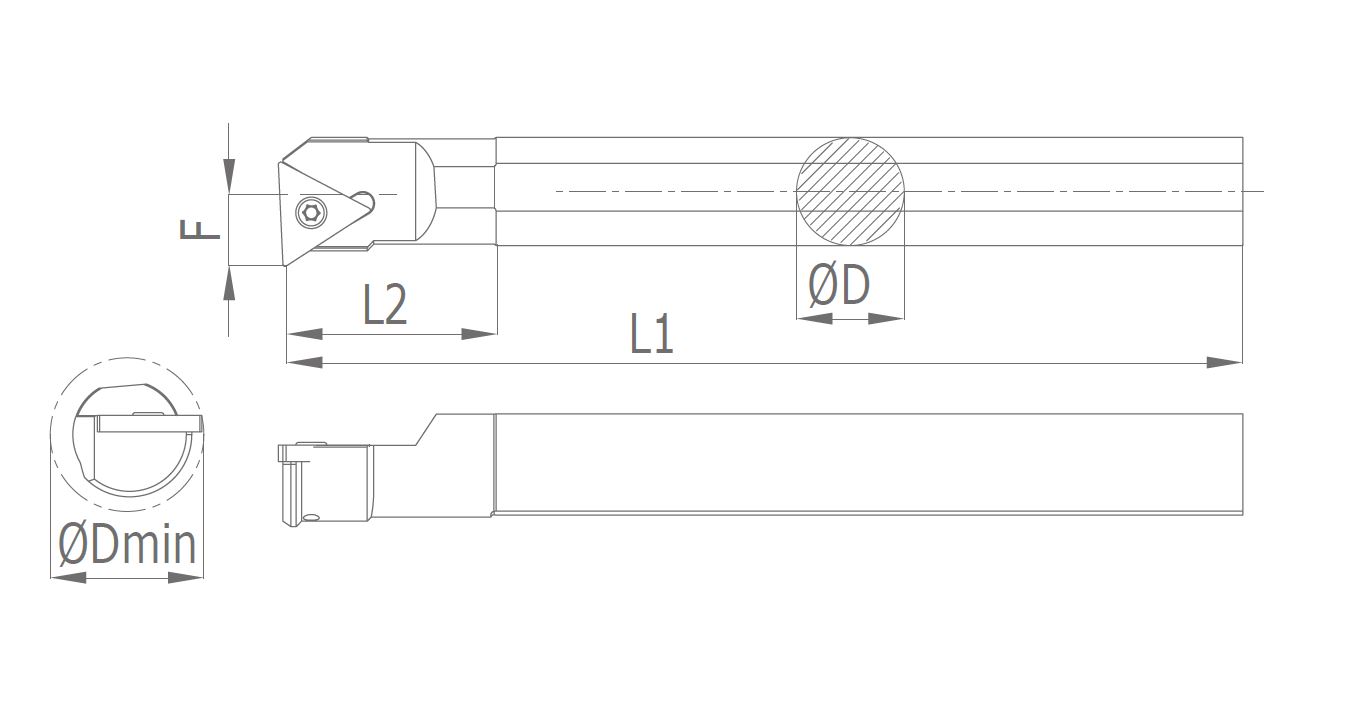

| ISO | R | L | D | D min | F | L1 | L2 | λF | ϒP | Insert | Shim | Screw | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1056500 | ● | ● | 8 | 10 | 6 | 100 | 30 | -10 | 0 | CC.T 0602.. | - | - | M2,5X5 | T08 |
| 1056600 | ● | ● | 8 | 11 | 6 | 100 | 25 | -10 | 0 | |||||
| 1056700 | ● | ● | 10 | 13 | 7 | 125 | 25 | -10 | 0 | |||||
| 1056800 | ● | ● | 8 | 11 | 6 | 100 | 25 | -10 | 0 | |||||
| 1056900 | ● | ● | 12 | 16 | 9 | 150 | 30 | -8 | 0 | |||||
| 1057000 | ● | ● | 16 | 20 | 11 | 180 | 35 | -8 | 0 | M2,5X7 | ||||
| 1057100 | ● | ● | 16 | 20 | 11 | 180 | 35 | -8 | 0 | CC.T 09T3.. | M3,5X8 | T15 | ||
| 1057200 | ● | ● | 20 | 25 | 13 | 200 | 40 | -8 | 0 | M3,5X11 | ||||
| 1057300 | ● | ● | 25 | 32 | 17 | 250 | 50 | -8 | 0 | |||||
| 1057400 | ● | ● | 32 | 40 | 23 | 300 | 60 | -8 | 0 | M3,5X6 | ||||
| 1057500 | ● | ● | 25 | 32 | 17 | 250 | 50 | -8 | 0 | CC.T 1204.. | CC..12 | M6XM4 | M4X14 | T20 |
| 1057600 | ● | ● | 32 | 40 | 23 | 300 | 60 | -8 | 0 | |||||
| 1057700 | ● | ○ | 40 | 50 | 27 | 400 | 70 | -8 | 0 |
