Description
WCM

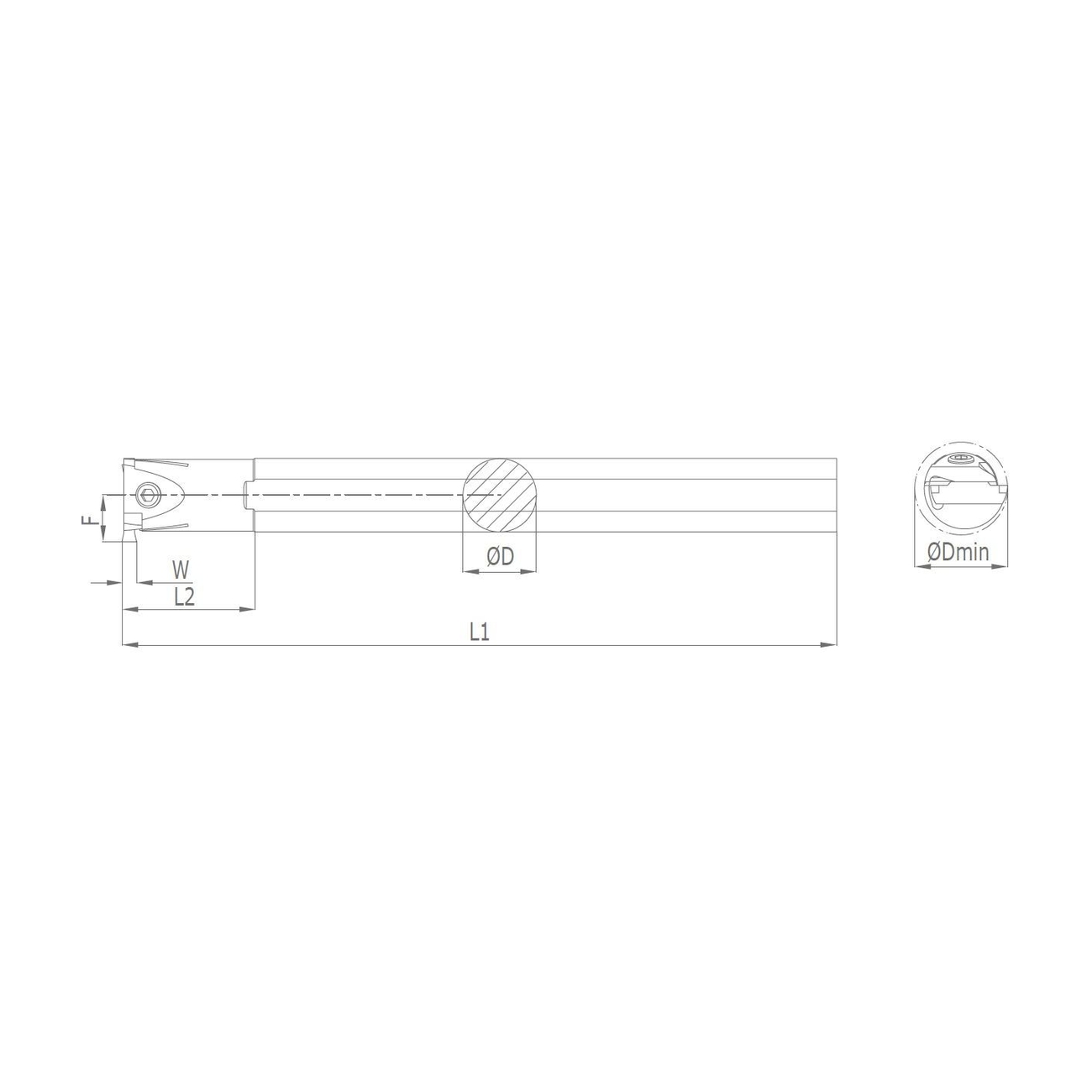

| WCM | Stock | Inter Coolant | D | d | d1 | L | L1 | L2 | Insert | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1211100 | ● | ● | 15.5 | 25 | 34 | 126 | 46.5 | 56 | WCM 030208 | M2.5X5 | T08 |
| 1211200 | ● | ● | 16 | 25 | 34 | 126 | 48 | 56 | |||
| 1211300 | ● | ● | 16.5 | 25 | 34 | 129 | 49.5 | 56 | |||
| 1211400 | ● | ● | 17 | 25 | 34 | 129 | 51 | 56 | |||
| 1211500 | ● | ● | 17.5 | 25 | 34 | 132 | 52.5 | 56 | |||
| 1211600 | ● | ● | 18 | 25 | 34 | 132 | 54 | 56 | |||
| 1211700 | ● | ● | 18.5 | 25 | 34 | 135 | 55.5 | 56 | |||
| 1211800 | ● | ● | 19 | 25 | 34 | 135 | 57 | 56 | |||
| 1211900 | ● | ● | 19.5 | 25 | 34 | 139 | 58.5 | 56 | |||
| 1212000 | ● | ● | 20 | 25 | 34 | 139 | 60 | 56 | WCM 040208 | M2.5X5 | T08 |
| 1212100 | ● | ● | 20.5 | 25 | 34 | 143 | 61.5 | 56 | |||
| 1212200 | ● | ● | 21 | 25 | 34 | 143 | 63 | 56 | |||
| 1212300 | ● | ● | 21.5 | 25 | 34 | 147 | 64.5 | 56 | |||
| 1212400 | ● | ● | 22 | 25 | 34 | 147 | 66 | 56 | |||
| 1212500 | ● | ● | 22.5 | 25 | 34 | 151 | 67.5 | 56 | |||
| 1212600 | ● | ● | 23 | 25 | 34 | 151 | 69 | 56 | |||
| 1212700 | ● | ● | 23.5 | 25 | 34 | 153 | 70.5 | 56 | |||
| 1212800 | ● | ● | 24 | 25 | 34 | 153 | 72 | 56 | WCM 050308 | M3X9 | T10 |
| 1212900 | ● | ● | 24.5 | 25 | 34 | 156 | 73.5 | 56 | |||
| 1213000 | ● | ● | 25 | 25 | 34 | 156 | 75 | 56 | |||
| 1213100 | ● | ● | 25.5 | 25 | 34 | 160 | 76.5 | 56 | |||
| 1213200 | ● | ● | 26 | 25 | 34 | 160 | 78 | 56 | |||
| 1213300 | ● | ● | 26.5 | 25 | 34 | 164 | 79.5 | 56 | |||
| 1213400 | ● | ● | 27 | 25 | 34 | 164 | 81 | 56 | |||
| 1213500 | ● | ● | 27.5 | 25 | 34 | 168 | 82.5 | 56 | |||
| 1213600 | ● | ● | 28 | 25 | 34 | 168 | 84 | 56 | |||
| 1213700 | ● | ● | 28.5 | 25 | 34 | 172 | 85.5 | 56 | |||
| 1213800 | ● | ● | 29 | 25 | 34 | 172 | 87 | 56 | |||
| 1213900 | ● | ● | 29.5 | 25 | 34 | 180 | 88.5 | 56 | |||
| 1214000 | ● | ● | 30 | 32 | 44 | 180 | 90 | 60 | WCM 06T308 | M3.5X9 | T15 |
| 1214100 | ● | ● | 31 | 32 | 44 | 184 | 93 | 60 | |||
| 1214200 | ● | ● | 32 | 32 | 44 | 188 | 96 | 60 | |||
| 1214300 | ● | ● | 33 | 32 | 44 | 192 | 99 | 60 | |||
| 1214400 | ● | ● | 34 | 32 | 44 | 192 | 102 | 60 | |||
| 1214500 | ● | ● | 35 | 32 | 44 | 200 | 105 | 60 | |||
| 1214600 | ● | ● | 36 | 32 | 44 | 204 | 108 | 60 | |||
| 1214700 | ● | ● | 37 | 32 | 44 | 208 | 111 | 60 | |||
| 1214800 | ● | ● | 38 | 32 | 44 | 212 | 114 | 60 | |||
| 1214900 | ● | ● | 39 | 32 | 44 | 216 | 117 | 60 | |||
| 1215000 | ● | ● | 40 | 32 | 44 | 220 | 120 | 60 | |||
| 1215100 | ● | ● | 41 | 32 | 44 | 223 | 123 | 60 | |||
| 1215200 | ● | ● | 42 | 32 | 44 | 226 | 126 | 60 | |||
| 1215300 | ● | ● | 43 | 32 | 44 | 229 | 129 | 60 | |||
| 1215400 | ● | ● | 44 | 32 | 44 | 232 | 132 | 60 | |||
| 1215500 | ● | ● | 45 | 40 | 54 | 245 | 135 | 70 | WCM 080412 | M4X11 | T15 |
| 1215600 | ● | ● | 46 | 40 | 54 | 248 | 138 | 70 | |||
| 1215700 | ● | ● | 47 | 40 | 54 | 251 | 141 | 70 | |||
| 1215800 | ● | ● | 48 | 40 | 54 | 254 | 144 | 70 | |||
| 1215900 | ● | ● | 49 | 40 | 54 | 257 | 147 | 70 | |||
| 1216000 | ● | ● | 50 | 40 | 54 | 260 | 150 | 70 |
