Description

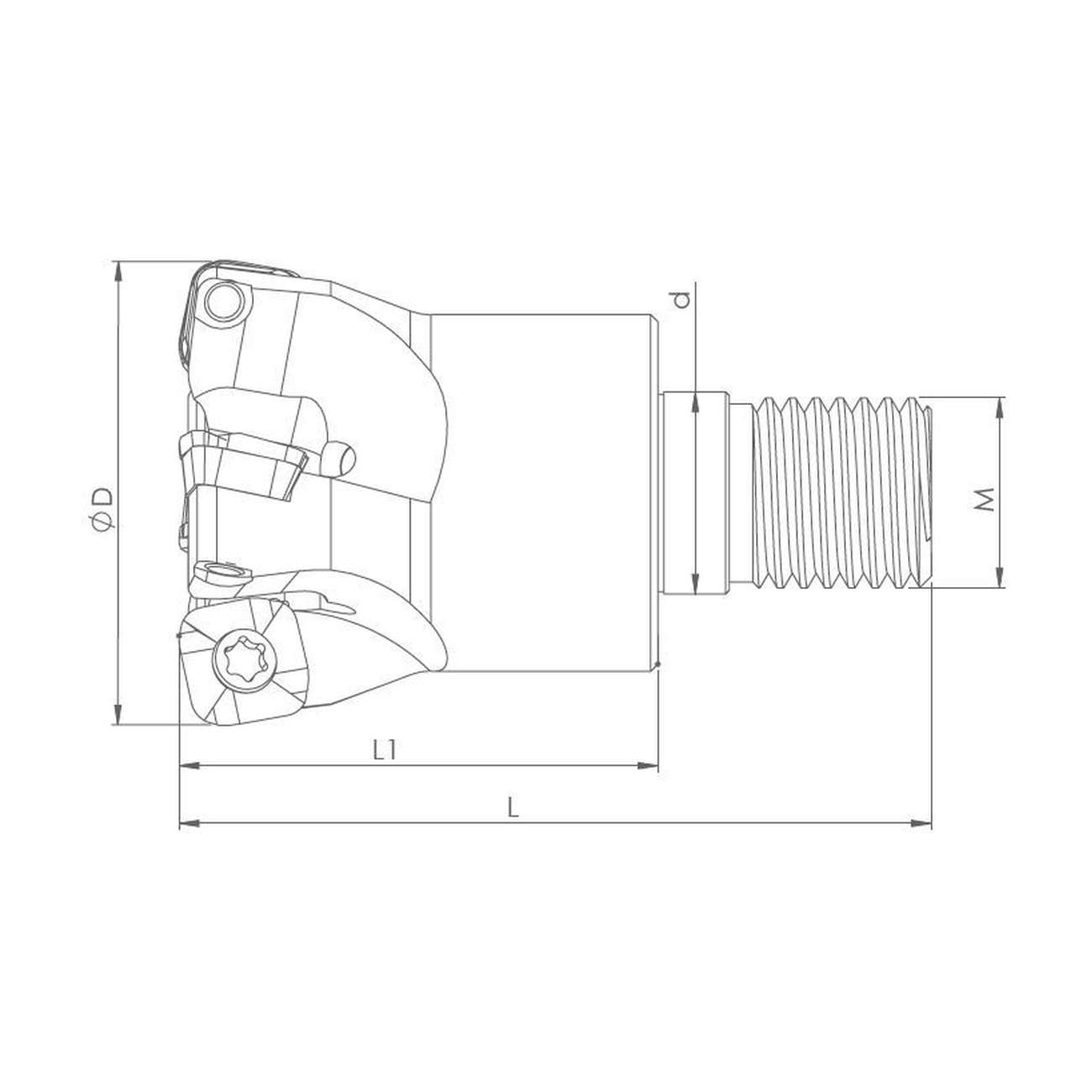

| TGTC / PLBT / ZCC / KLP | Stock | Inter Coolant | D | d | d1 | L | L1 | L2 | Insert | Screw | Torx Key |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1224900 | ● | ● | 13 | 20 | 25 | 101 | 39 | 50 | |||
| 1225000 | ● | ● | 14 | 20 | 25 | 105 | 42 | 50 | SP..050204 | M2X5 | |
| 1225100 | ● | ● | 14.5 | 20 | 25 | 109 | 45 | 50 | |||
| 1225200 | ● | ● | 15 | 20 | 25 | 109 | 45 | 50 | |||
| 1225300 | ● | ● | 15.5 | 20 | 34 | 126 | 48 | 50 | |||
| 1225400 | ● | ● | 16 | 20 | 34 | 126 | 48 | 50 | |||
| 1225500 | ● | ● | 16.5 | 25 | 34 | 129 | 51 | 50 | |||
| 1225600 | ● | ● | 17 | 25 | 34 | 129 | 51 | 56 | T06 | ||
| 1225700 | ● | ● | 17.5 | 25 | 34 | 132 | 54 | 56 | |||
| 1225800 | ● | ● | 18 | 25 | 34 | 132 | 54 | 56 | SP..060204 | M2.2X5 | |
| 1225900 | ● | ● | 18.5 | 25 | 34 | 135 | 57 | 56 | |||
| 1226000 | ● | ● | 19 | 25 | 34 | 135 | 57 | 56 | |||
| 1226100 | ● | ● | 19.5 | 25 | 34 | 139 | 60 | 56 | |||
| 1226200 | ● | ● | 20 | 25 | 34 | 139 | 60 | 56 | |||
| 1226300 | ● | ● | 20.5 | 25 | 34 | 143 | 63 | 56 | |||
| 1226400 | ● | ● | 21 | 25 | 34 | 143 | 63 | 56 | |||
| 1226500 | ● | ● | 21.5 | 25 | 34 | 147 | 66 | 56 | |||
| 1226600 | ● | ● | 22 | 25 | 34 | 147 | 66 | 56 | |||
| 1226700 | ● | ● | 22.5 | 25 | 34 | 151 | 69 | 56 | |||
| 1226800 | ● | ● | 23 | 25 | 34 | 151 | 69 | 56 | |||
| 1226900 | ● | ● | 23.5 | 25 | 34 | 153 | 72 | 56 | |||
| 1227000 | ● | ● | 24 | 25 | 34 | 153 | 72 | 56 | SP..07T308 | M2.5X7 | T08 |
| 1227100 | ● | ● | 24.5 | 25 | 34 | 156 | 75 | 56 | |||
| 1227200 | ● | ● | 25 | 25 | 34 | 156 | 75 | 56 | |||
| 1227300 | ● | ● | 25.5 | 25 | 34 | 160 | 78 | 56 | |||
| 1227400 | ● | ● | 26 | 25 | 34 | 160 | 78 | 56 | |||
| 1227500 | ● | ● | 26.5 | 25 | 34 | 164 | 81 | 56 | |||
| 1227600 | ● | ● | 27 | 25 | 34 | 164 | 81 | 56 | |||
| 1227700 | ● | ● | 27.5 | 25 | 34 | 168 | 84 | 56 | |||
| 1227800 | ● | ● | 28 | 25 | 34 | 168 | 84 | 56 | |||
| 1227900 | ● | ● | 28.5 | 25 | 34 | 172 | 87 | 56 | |||
| 1228000 | ● | ● | 29 | 25 | 34 | 172 | 87 | 56 | |||
| 1228100 | ● | ● | 29.5 | 25 | 44 | 180 | 90 | 56 | SP..090408 | M3,5X8 | |
| 1228200 | ● | ● | 30 | 32 | 44 | 180 | 90 | 60 | |||
| 1228300 | ● | ● | 31 | 32 | 44 | 184 | 93 | 60 | |||
| 1228400 | ● | ● | 32 | 32 | 44 | 188 | 96 | 60 | T15 | ||
| 1228500 | ● | ● | 33 | 32 | 44 | 192 | 99 | 60 | |||
| 1228600 | ● | ● | 34 | 32 | 44 | 192 | 102 | 60 | |||
| 1228700 | ● | ● | 35 | 32 | 44 | 200 | 105 | 60 | |||
| 1228800 | ● | ● | 36 | 32 | 44 | 204 | 108 | 60 | |||
| 1228900 | ● | ● | 37 | 32 | 44 | 208 | 111 | 60 | SP..110408 | M4X11 | |
| 1229000 | ● | ● | 38 | 32 | 44 | 212 | 114 | 60 | |||
| 1229100 | ● | ● | 39 | 32 | 44 | 216 | 117 | 60 | |||
| 1229200 | ● | ● | 40 | 32 | 44 | 220 | 120 | 60 | |||
| 1229300 | ● | ● | 41 | 32 | 44 | 223 | 123 | 60 | |||
| 1229400 | ● | ● | 42 | 32 | 44 | 226 | 126 | 60 | |||
| 1229500 | ● | ● | 43 | 32 | 44 | 229 | 129 | 60 | |||
| 1229600 | ● | ● | 44 | 32 | 44 | 232 | 132 | 60 | |||
| 1229700 | ● | ● | 45 | 40 | 54 | 245 | 135 | 70 | SP..140512 | M5X11 | T20 |
| 1229800 | ● | ● | 46 | 40 | 54 | 248 | 138 | 70 | |||
| 1229900 | ● | ● | 47 | 40 | 54 | 251 | 141 | 70 | |||
| 1230000 | ● | ● | 48 | 40 | 54 | 254 | 144 | 70 | |||
| 1230100 | ● | ● | 49 | 40 | 54 | 257 | 147 | 70 | |||
| 1230200 | ● | ● | 50 | 40 | 54 | 260 | 150 | 70 |
