Product Table

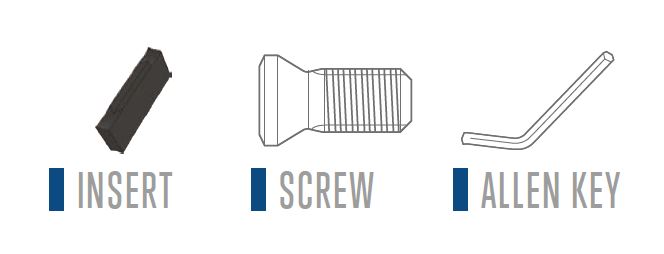

| S224 HRN | R | L | Dmax | W | H | B | FS | L1 | L2 | H1 | H2 | CD | Insert | Screw | Allen Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1005200 | ● | ● | 62 | 2 | 16 | 16 | 15 | 125 | 43 | 16 | 28 | 18 | S224-2 | M6X26 | A4 |
| 1005300 | ● | ● | 62 | 2 | 20 | 20 | 19 | 125 | 43 | 20 | 28 | 18 | |||
| 1005400 | ● | ● | 62 | 2 | 25 | 25 | 24 | 150 | 43 | 25 | 35 | 21 | |||
| 1005500 | ● | ● | 62 | 3 | 16 | 16 | 14.5 | 125 | 43 | 16 | 28 | 18 | S224-3 | ||
| 1005600 | ● | ● | 62 | 3 | 20 | 20 | 18.5 | 125 | 43 | 20 | 28 | 18 | |||
| 1005700 | ● | ● | 62 | 3 | 25 | 25 | 23.5 | 150 | 43 | 25 | 35 | 21 | |||
| 1005800 | ● | ● | 62 | 3 | 32 | 32 | 30.5 | 170 | 46 | 32 | 42 | 24 | |||
| 1005900 | ● | ● | 62 | 4 | 16 | 16 | 14 | 125 | 43 | 16 | 28 | 18 | S224-4 | ||
| 1006000 | ● | ● | 62 | 4 | 20 | 20 | 18 | 125 | 43 | 20 | 28 | 18 | |||
| 1006100 | ● | ● | 62 | 4 | 25 | 25 | 23 | 150 | 43 | 25 | 35 | 21 | |||
| 1006200 | ● | ● | 62 | 4 | 32 | 32 | 30 | 170 | 46 | 32 | 42 | 24 |
