Product Table

ISO AP..1003	Stock	Inter Coolant	D	Z	H	L	d	Insert	Screw	Torx Key
1066900	●	○	28	4	35	150	25	AP..1003..	M2.5X7	T08
1067000	●	○	26	3	35	150	25		M2.5X7
1067100	●	●	26	3	35	200	25		M2.5X7
1067200	●	○	26	3	35	250	25		M2.5X7
1067300	●	●	30	4	30	100	25		M2.5X7
1067400	●	○	30	4	30	120	25		M2.5X7
1067500	●	●	30	3	40	150	25		M2.5X7
1067600	●	○	30	4	40	150	25		M2.5X7
1067700	●	○	30	4	40	200	25		M2.5X7
1067800	●	○	30	3	40	300	25		M2.5X7
1067900	●	●	32	4	40	150	25		M2.5X7
1068000	●	○	32	4	60	150	32		M2.5X7
1068100	●	●	32	4	60	200	32		M2.5X7
1068200	●	○	35	4	30	100	25		M2.5X7
1068300	●	●	35	4	30	120	25		M2.5X7
1068400	●	○	35	4	30	150	25		M2.5X7
1068500	●	●	35	4	30	200	25		M2.5X7
1068600	●	○	35	4	35	100	32		M2.5X7
1068700	●	○	35	4	35	120	32		M2.5X7
1068800	●	○	35	4	35	150	32		M2.5X7
1068900	●	○	40	5	40	100	25		M2.5X7
1069000	●	○	40	5	40	120	25		M2.5X7
1069100	●	○	40	5	40	150	25		M2.5X7
1069200	●	○	40	5	40	200	25		M2.5X7
1069300	●	○	40	5	40	100	32		M2.5X7
1069400	●	●	40	5	40	120	32		M2.5X7
1069500	●	○	40	5	40	150	32		M2.5X7

Description

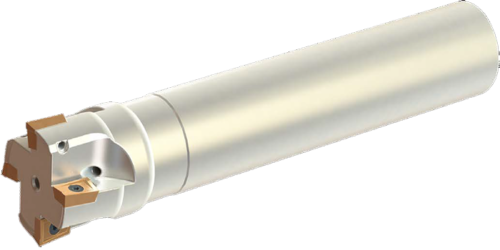

AP..1003 / ISO
