Product Table

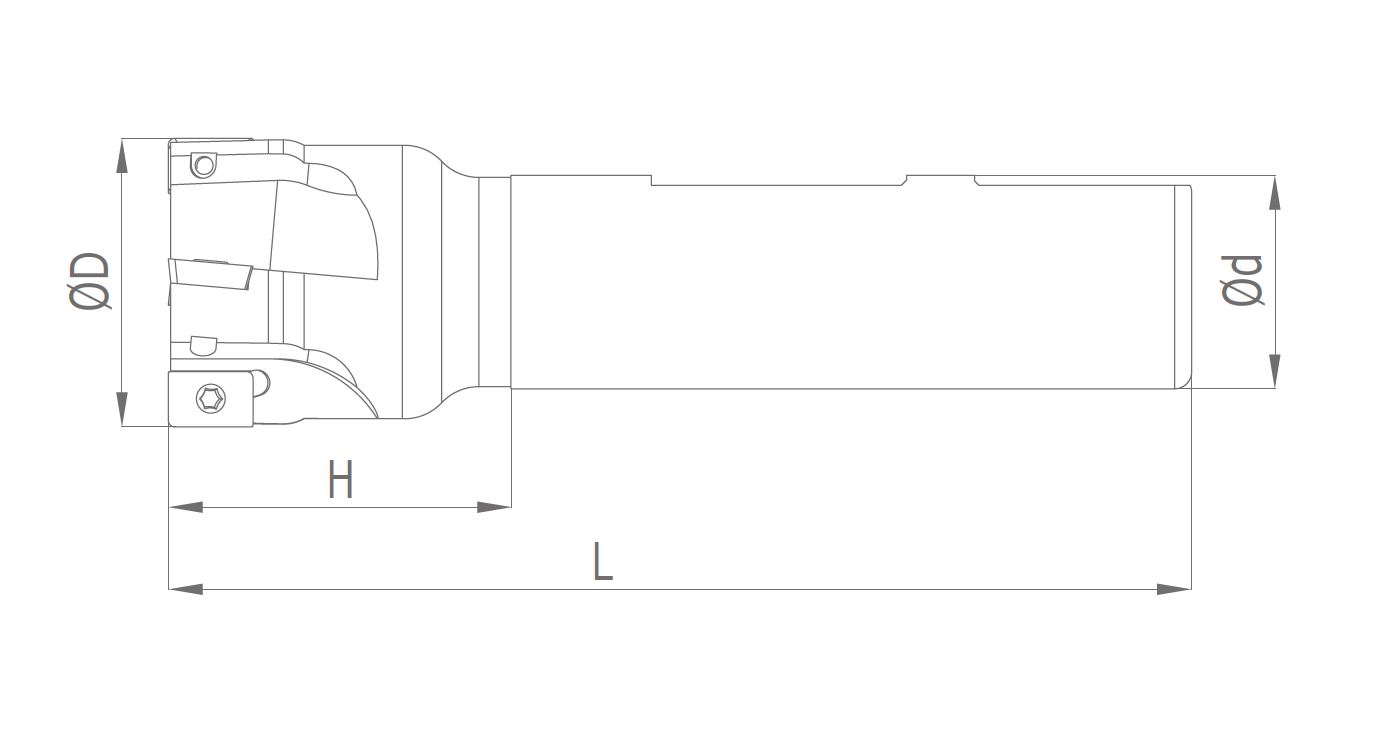

ISO AP..1003	Stock	Inter Coolant	D	Z	H	L	d	Insert	Screw	Torx Key
1064200	●	●	12	1	30	120	12	AP..1003..	M2.5X6	T08
1064300	●	○	14	1	30	120	12		M2.5X6
1064400	●	●	16	2	30	100	16		M2.5X6
1064500	●	○	16	2	30	120	16		M2.5X6
1064600	●	●	16	2	40	150	16		M2.5X6
1064700	●	○	16	2	50	200	16		M2.5X6
1064800	●	●	16	2	50	250	16		M2.5X6
1064900	●	○	18	2	30	100	16		M2.5X6
1065000	●	●	18	2	30	120	16		M2.5X6
1065100	●	○	18	2	40	150	16		M2.5X6
1065200	●	○	18	2	50	200	16		M2.5X6
1065300	●	●	20	3	30	100	20		M2.5X7
1065400	●	○	20	3	30	120	20		M2.5X7
1065500	●	●	18	2	50	250	16		M2.5X6
1065600	●	○	20	3	40	150	20		M2.5X7
1065700	●	●	20	3	60	200	20		M2.5X7
1065800	●	○	20	3	70	250	20		M2.5X7
1065900	●	●	22	3	30	100	20		M2.5X7
1066000	●	○	22	3	30	120	20		M2.5X7
1066100	●	○	22	3	40	150	20		M2.5X7
1066200	●	●	22	3	50	200	20		M2.5X7
1066300	●	○	22	3	50	250	20		M2.5X7
1066400	●	●	25	3	30	100	25		M2.5X7
1066500	●	○	25	3	30	120	25		M2.5X7
1066600	●	●	25	3	40	150	25		M2.5X7
1066700	●	○	25	3	60	200	25		M2.5X7
1066800	●	●	25	3	70	250	25		M2.5X7

Description

AP..1003 / ISO
